The ConnBlade Types  - Trial Orders (with some limitations)

NOW AVAILABLE OF U.H.M.W. POLYETHYLENE  (Adobe PDF Format)

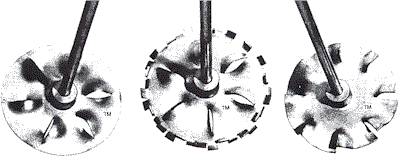

IT (Intensive Type) for agitation; Positive but gentle material flow; Low shear smooth fast mixing without air inclusion.

ITC (Intensive Type Cutter) for shear and agitation; Positive material movement; Good blending and shear for the more fibrous additives and fillers.

ITT (Intensive Type with Teeth) for high shear and agitation; Most positive material movement; Best combination where high shear is required for a rapid and smooth blend or when high shear is not required but is not detrimental.

The ConnBlade Features & Benefits

Excellent for low shear blending or high shear dispersion. The Conn blades are Patented intensive type stirrers with unique design features making them far superior to anything else available. The louvers formed in the plain of the blade provide maximum pumping action. Giving positive over all material movement with excellent top to bottom flow, they can decrease the required processing time considerably when compared to other blades. Due to finer grind attained in pre-mix, mill time may be reduced or further processing may be unnecessary. The structural and balanced design of the Conn blades eliminates the need for stabilizer rings and heavy stiffening plates normally required. The standard heavier gauge construction give the Conn blades much longer life against abrasion. Type 304 Stainless is standard however higher grade Stainless, Titanium, Carbon steel, or other materials are available as well as Case Hardening.

Conn blades are available 2" to 48" diameter with mounting hubs bored as required or center holes to fit other than Conn mixers. Blades with the hub type mounting can be easily raised or lowered on the shaft. The standard ConnBlade is right hand which, when viewing from top or along stirrer shaft, would turn in a clockwise direction thus pumping material down or away from the drive unit. Left hand blades for counter clockwise rotation are also available. For some applications it is desirable to use a right hand and left hand blade on the same shaft thus bringing material up from the bottom and down from the top increasing the blending forces between the blades. This arrangement is also excellent for sparging gas or liquids into the mix. The ConnBlade can be conveniently and effectively used in a hand drill or drill press. For this purpose kits are available which consist of 1 each 2", 3", and 4" stirrers with 3/8" diameter x 12" or 16" long shaft. Simply specify kit no. and shaft length. Shaft end can be turned for use in 1/4" capacity chuck.

Multi-piece construction is available for entry through small manways.
